Asphalt Institute Vacuum
Viscometers

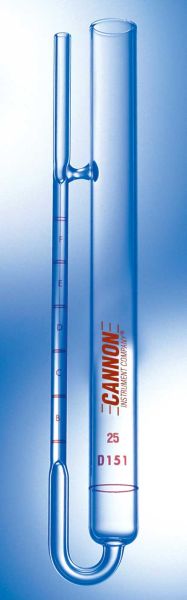

Asphalt Institute Vacuum Viscometers

Asphalt Institute Vacuum Calibrated AIVC (9724-R50) Series Similar to Cannon-Manning Vacuum (CMV, 9724-H50) series, but with graduated capillary instead of two timing bulbs. Read more about the significance of expanded uncertainty. Provided with certificate of calibration and instruction sheet. Asphalt Institute Vacuum Calibrated AIVC-RO (9724-T50) Series Same as 9724-R50 series, but with permanently attached round metal holder, for hole 51 mm (2 inches) in diameter. Minimum sample size 3 mL. Require bath depth of 180 mm (7.1 inches). Holder is not supplied. For holder, see 9726-N15 Note: For sizes 400R and 800R, the “roofing” design is normally used for segment B, which extends the viscosity range to 1,400,000 and 5,800,000 poise, respectively. See ASTM D 2171, Table X2. Viscometers with special constants are available by special order at additional cost.

Size	Viscosity range, poise	Approx. constant poise/second at 300mm Hg Bulb B	Approx. constant poise/second at 300mm Hg Bulb C	Approx. constant poise/second at 300mm Hg Bulb D	Calibrated AIVC Series	Calibrated AIVC-RO Series
25	42 - 800	2	1	0.7	9724-R50 Qty	9724-T50 Qty
50	180 - 3200	8	4	3	9724-R55 Qty	9724-T55 Qty
100	600 - 12800	32	16	10	9724-R60 Qty	9724-T60 Qty
200	2400 - 52000	128	64	40	9724-R65 Qty	9724-T65 Qty
400R	9600 - 1400000	500	250	160	9724-R70 Qty	9724-T70 Qty
800R	38000 - 5800000	2000	1000	640	9724-R75 Qty	9724-T75 Qty
